It is used for DC contactor to save energy, which can reduce the operating temperature of the contactor and reduce the energy consumption of the DC contactor.

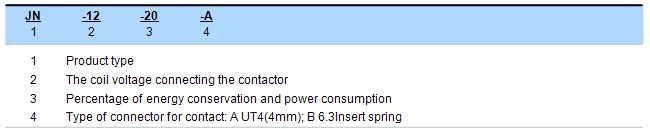

SAYOON MODEL IMPLICATION:
USES:
It is used for DC contactor to save energy, which can reduce the operating temperature of the contactor and reduce the energy consumption of the DC contactor.
TECHNICAL PARAMETERS: (Version 1.39)
SAYOON Product Type | JN |
| Rated current | 3A |
| Rated voltage | 12V,24V,36V,48V,60V,72V |
| Input Terminal | Red: positive power input, black: negative power supply |
| Output Terminal (Connecting contactor) | Yellow: positive output, Green: negative power supply |
| Input line length | 320mm |
| Output line length | 150mm |
| Output interface | UT4（4mm） |
| Wire specification | RV-0.3 |
| Save power and consumption | 70-95% |
INSTALLATION DIAGRAM:

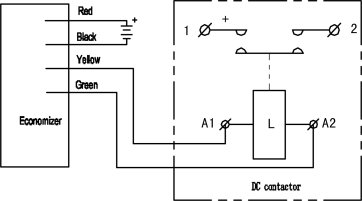

WIRING DIAGRAM:
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Ambient temperature | -25~+70℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| Concussion | (60～100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP68 |
PRODUCT PICTURE:
DOWNLOAD DATA:
| No. | Download |
| 1 |  JNdatasheet |
| 2 | DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS |
| 3 | Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader |
Tips: if you want to understand the technical details of parameters more SAYOON JN DC Contactor Energy Saver, other SAYOON or the product of information, please visit SAYOON electric official website www.pmp3.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
